Drip Irrigation Pipe

Drip Irrigation Pipes

Drip Irrigation Pipe

Drip irrigation pipe is the most efficient water and nutrient delivery system in advanced farming. It delivers water directly to the plant’s root uniformly, so each plant gets water and nutrients to grow optimally. It helps farmers produce higher yields while saving water as well as fertilizers, energy, and even crop protection products.

Mipatex drip pipe is made from LDPE, LLDPE, UV stabilizers, and other additives to make it strong, durable, and resistant to all agricultural chemicals and fertilizers. Itcan be the necessary factor that integrates your crop, soil, nutrients, and water for optimal results.

drip irrigation pipe
Drip Irrigation Pipe Features, Benefits & Design

Drip Irrigation Pipes, Inline and Online Drip Hose

  • Durable: Mipatex drip pipe is strong and durable and can withstand all climatic conditions. Resistant to impact and puncture damage. It can be left out year-round, buried or on the surface, in any weather. Unaffected by all agricultural chemicals and fertilizers.
  • UV Stabilities: Mipatex drip irrigation pipes are UV stabilized and resistant to other environmental effects. They have excellent resistance to pesticides and other chemicals containing acid, alkalies, salts, etc.
  • Easy to Install: Installing a drip irrigation pipe is very easy; its flexible design and polyethylene material create an ultra-tight connection to fittings.
  • Compatibility: Its flexibility allows compatibility with all types of fittings, equipment, and surface. Suitable for all kinds of customized irrigations. Flow-regulated, self-flushing inline emitters deliver equal flow at a wide range of operating pressures.
  • Save Water: A drip irrigation system can save up to 70% in water savings. It delivers just the right amount of water slowly and precisely on the plant’s root zone. Also, reduce evaporation, no runoff, no waste of water.

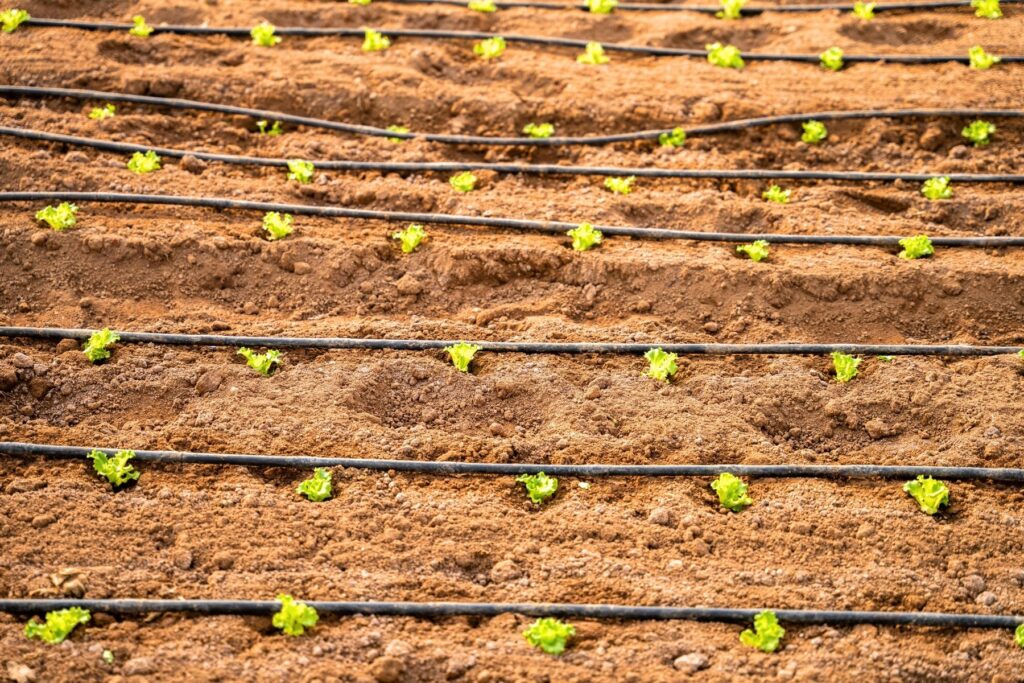

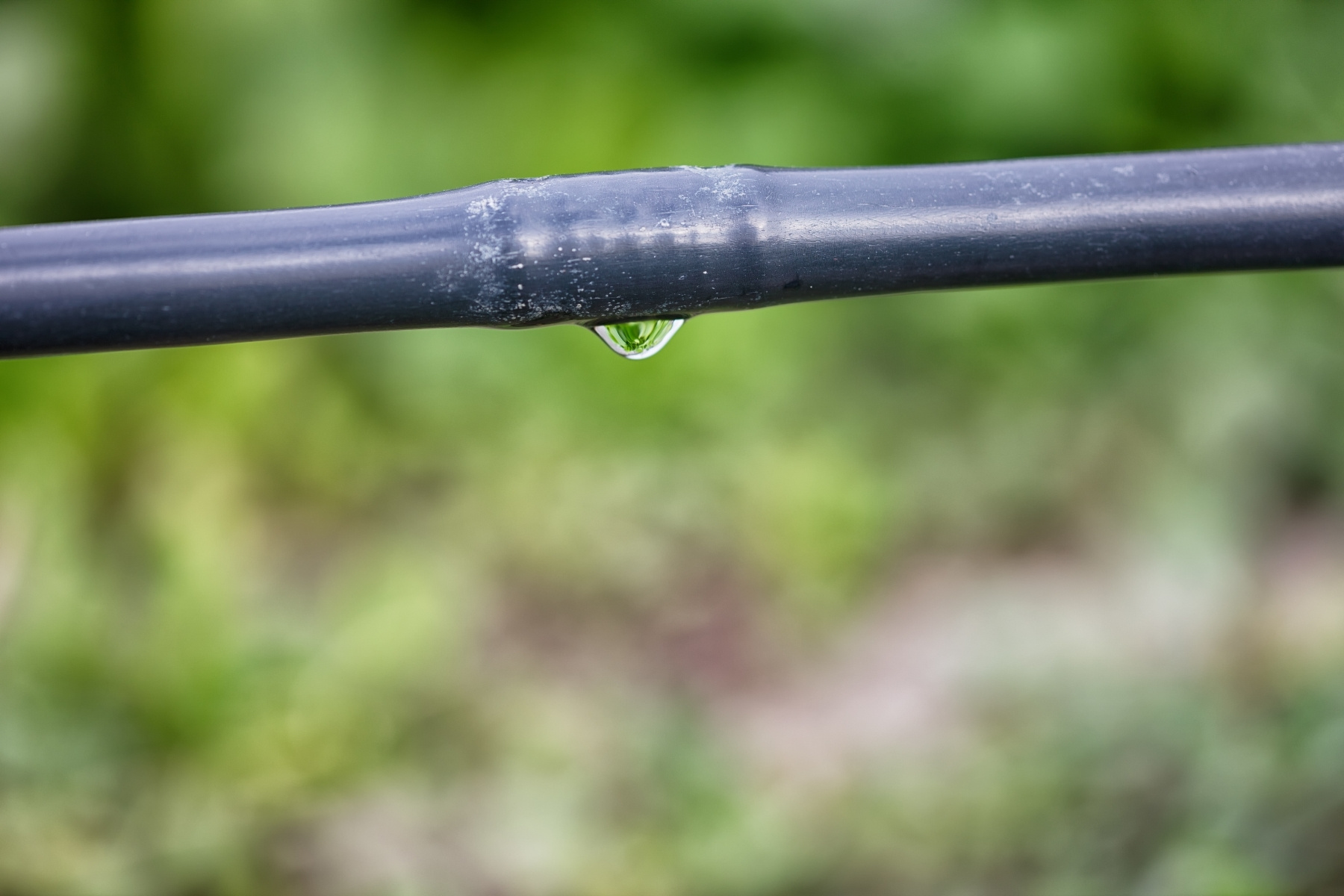

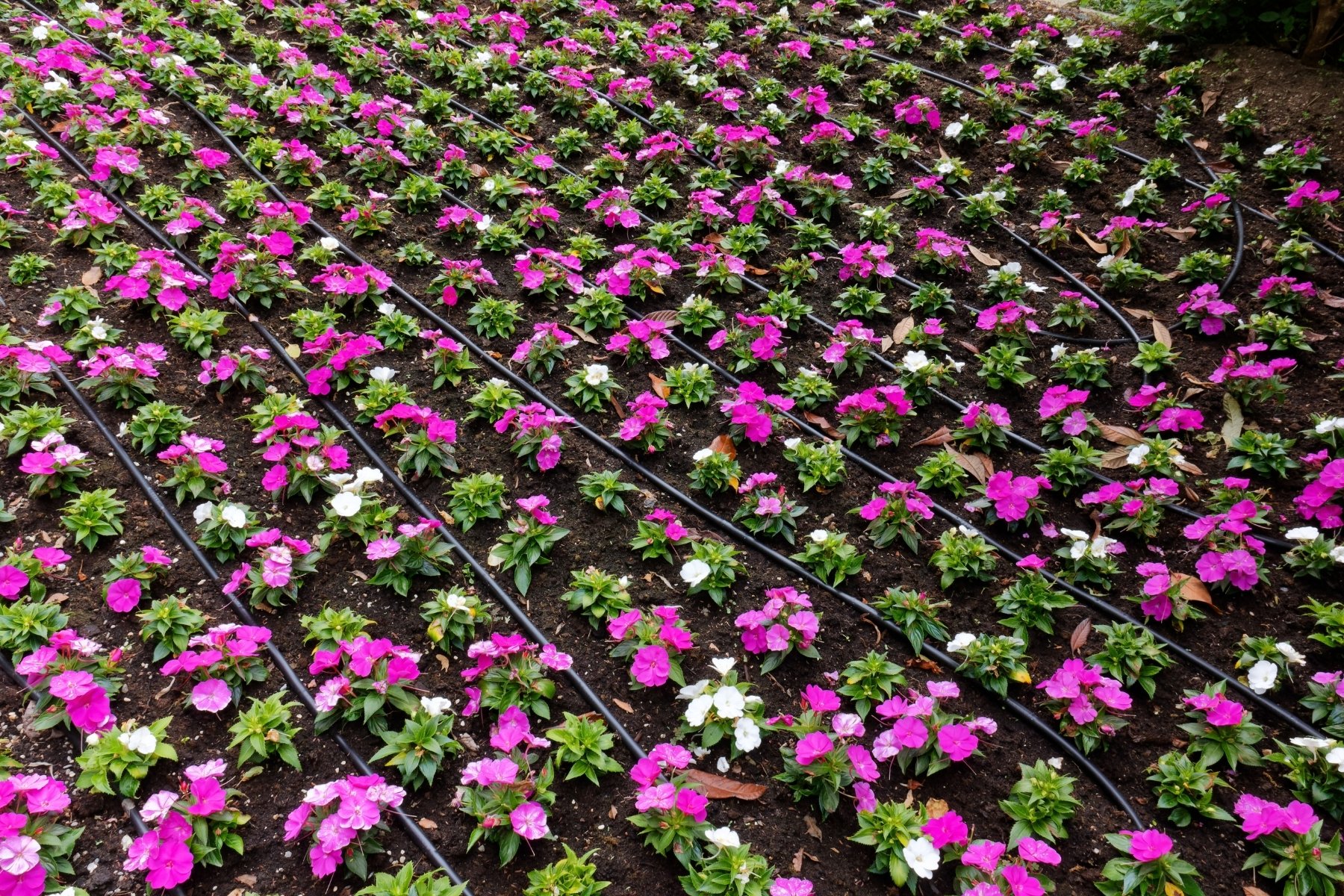

  • Inline Pipes: Inline Pipes is cylindrical drip line pipe to deliver uniform water flow into the crop’s roots via precise laser-punched outlet holes. Standard dripper spacing on 30, 40, 50, and 60 cm distance, customized emitter also available on customers demand. Come with standard discharges four lph at a working pressure of 1 kg/cm².

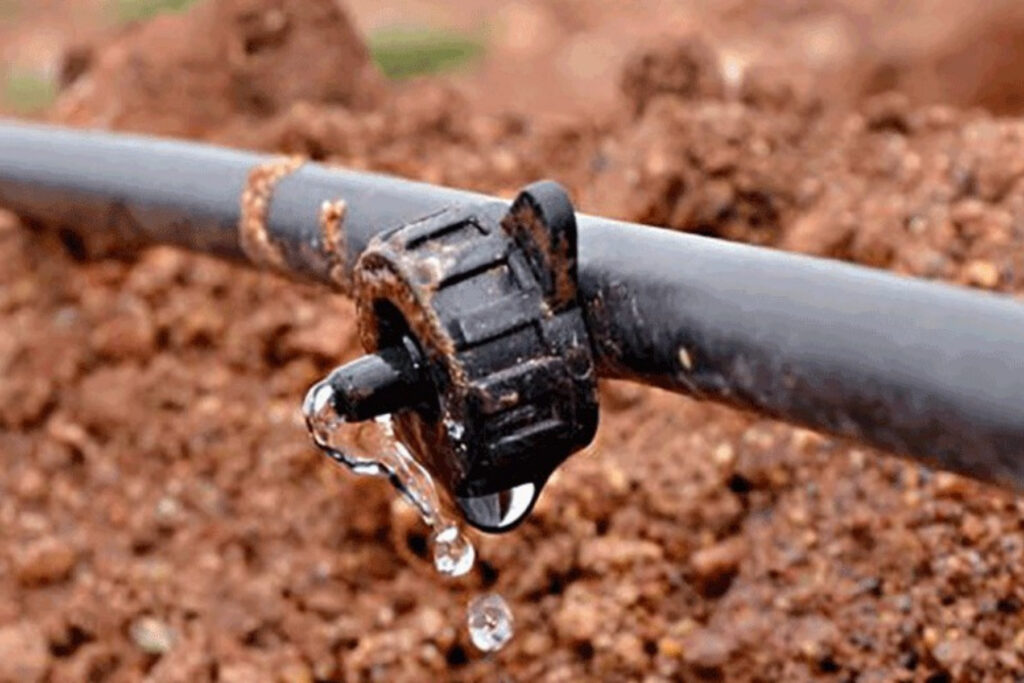

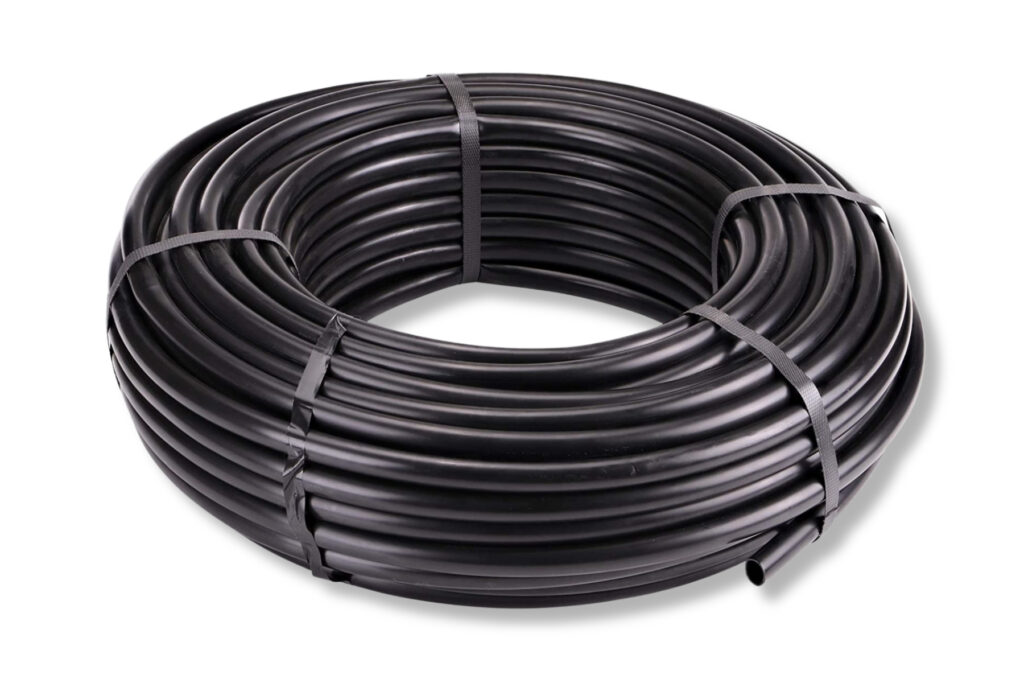

  • Online Pipes: Online pipes or drip hose is ideal for a mainline, sub-line lateral line in the drip irrigation system, high-pressure foggers, and sprayers. Come with 12mm, 16mm, and 20mm diameters.
drip irrigation pipe
Drip Irrigation Video

Drip Irrigation Pipes Video

Drip irrigation Pipe Specification

Drip Irrigation Pipe Technical Information

Manufactured from HDPE with functional additives using extrusion technology. Durable, thick-walled drip pipes withstand harsh conditions and perform well in all climates.

Product Code Type Nominal OD Wall Thickness Dripper Spacing Water Discharge Working Pressure Weight Coil Length
MOL1206C1
Online
12mm
0.6mm
N/A
N/A
2.0 kg/cm2
20.10g/m
500mtr
MOL1608C1
Online
16mm
0.8mm
N/A
N/A
2.0 kg/cm2
35.75g/m
300mtr
MOL2009C1
Online
20mm
0.9mm
N/A
N/A
2.0 kg/cm2
50.50g/m
200mtr
MIL1206C2
Inline
12mm
0.6mm
30cm, 40cm, 50cm, 60cm
4 lph
1 kg/cm2
-
500mtr
MIL1607C2
Inline
16mm
0.7mm
30cm, 40cm, 50cm, 60cm
4 lph
1 kg/cm2
-
300mtr
MIL2009C2
Inline
20mm
0.9mm
30cm, 40cm, 50cm, 60cm
4 lph
1 kg/cm2
-
200mtr
DOUBLE-WALL CORRUGATED PIPE DATA SHEETS

Downloads

The information contained here is accurate and reliable to the best of our knowledge and provided for reference purposes only.

Most fAQS about Drip irrigation Pipe

Drip Irrigation Pipe Frequently Ask Question (FAQ)

Drip irrigation is a technique to deliver water through a network of pipe and micro emitters to the soil surface or plant’s root zone, saving water, fertilizers, energy, and time while ensuring optimal growing conditions that help produce the highest yields possible.

The main benefits of using a drip irrigation system are saving water, energy, time.

  1. The crop grows consistently, healthier, and early harvest.
  2. Fertilizer use efficiency increases by 30%.
  3. Reduce the cost of energy, fertilizers, and labor.
  4. Reduce fungal infections and the germination of weeds in the areas between plants.
  5. Deliver only needed areas uniformly, reduce water runoff, and limit evaporation.
  6. Prevent damage with water blasting and overwatering.

In drip irrigation systems, online drip laterals are used as a mainline, sub-line lateral pipe. Inline drip pipes are cylindrical drip lateral to deliver uniform water flow into the crop’s roots via precise laser punched outlet holes.

Drip irrigation helps farmer increased crop yield and quality to increase income, while at the same time reducing the costs of water, fertilizer, energy, labour, weed control, chemical applications, equipment usage and insurance.
