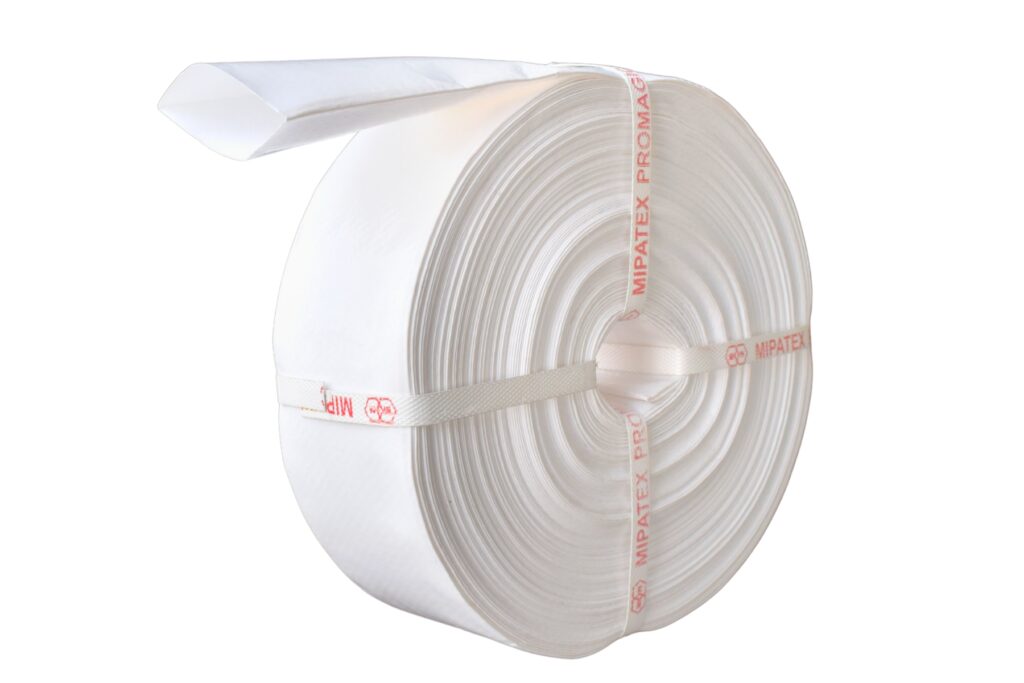

HDPE Lay Flat Pipe

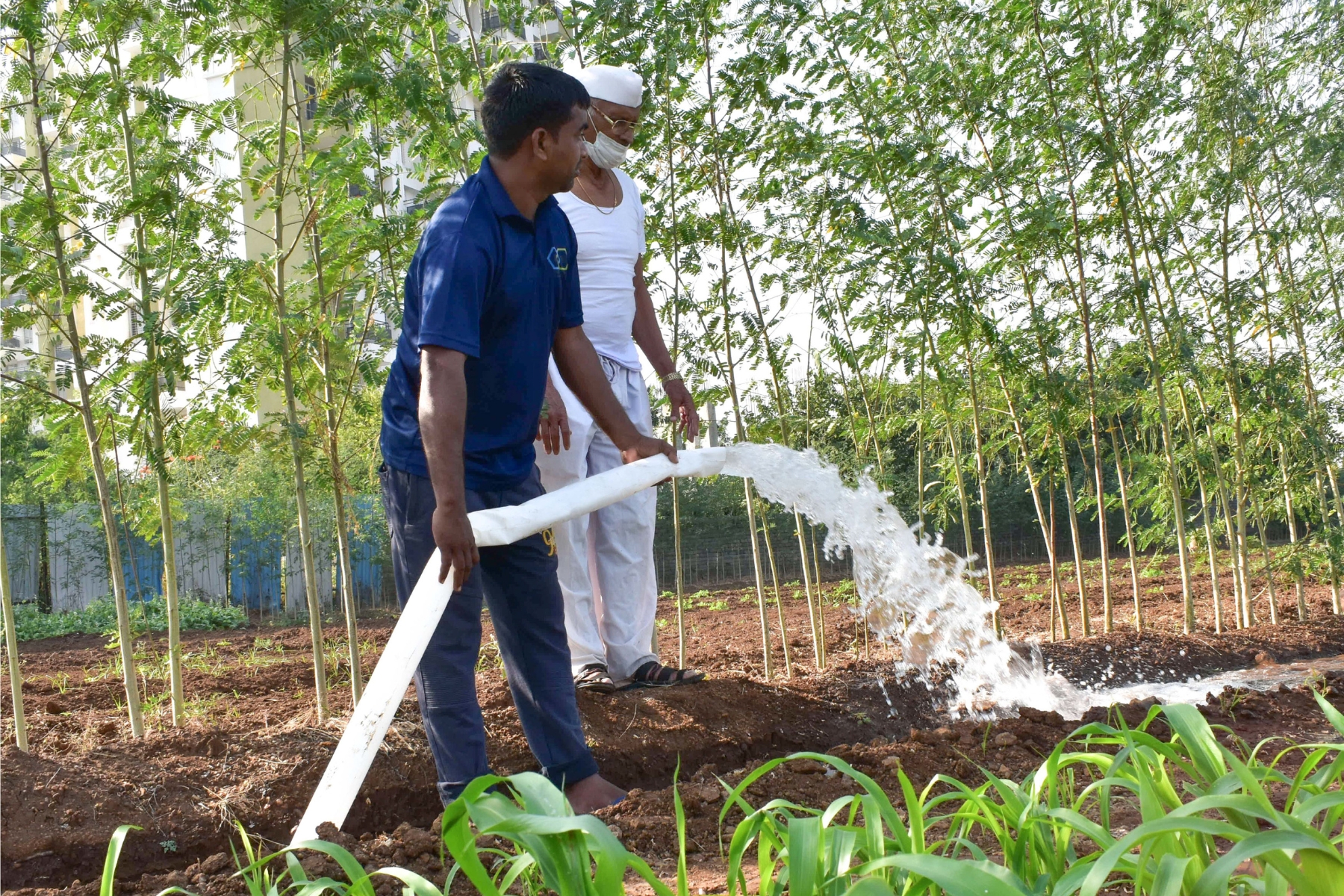

HDPE lay flat pipe or lapeta pipe is the more economical alternative for water conveyance in remote areas. Lay flat pipe is the most popular irrigation pipe option because they are lightweight and conveniently help the farmer to convey water throughout their farm. Suitable in agricultural activities for water conveyance where the geographical area is rough or uneven.

We manufacture HDPE lay flat pipe from UV stabilized HDPE woven laminated fabrics using hot air welding technology. These are resistance to pesticides, other agricultural chemicals, salt, etc. Our unique HDPE woven laminated design makes it flexible, lightweight, easy to handle, economical and durable.

HDPE Lay Flat Pipe Features, Benefits & Design

HDPE Lay Flat Pipe Hose, Lapeta Pipe

Strong & Durable: Mipatex HDPE lay flat pipe is strong enough to withstand all weather conditions. It is resistant to all agricultural chemicals. It can be used year-round, on any surface, or in any weather.
Lightweight and Flexible: Mipatex HDPE flat lay pipes unique woven laminated and heat weld design make them extremely flexible and lightweight, easy to transport and install in remote farms, uneven surfaces, or other areas.
Easy to Install: HDPE woven multilayer lay flat pipes unique woven laminated and heat weld design make it highly flexible and lightweight. It is easy to transport and install in remote farms, uneven surfaces, or other areas.
Versatile: HDPE lay flat pipes can be used as a counter-weight over the HDPE geomembrane pond liner to protect flutter during stormy winds.

HDPE Lay Flat Pipe Specification

HDPE Lay Flat Pipe Technical Information

MIPATEX HDPE Laminated Woven Lay Flat Tube for Irrigation Purposes is made as per IS 16190: 2014. Manufactured with HDPE woven fabrics laminated with LDPE and Treated with UV Stabilizer and functional additives using extrusion coating technology and welded with single fusion sealing.

Product Code	Size	Length	Mass	Color	Expected Life
MLFP50	50mm (2inch)	60m	260 GSM	White, Black	3 Years
MLFP60	63mm (2.5inch)	60m	260 GSM	White, Black	3 years
MLFP75	75mm (3inch)	60m	260 GSM	White, Black	3 Years
MLFP110	110mm (4.34inch)	60m	260 GSM	White, Black	3 Years
MLFP125	125mm (5inch)	60m	260 GSM	White, Black	3 Years
MLFP150	150mm (6inch)	60m	260 GSM	White, Black	3 Years
MLFP175	175mm (7inch)	60m	260 GSM	White, Black	3 Years
MLFP200	200mm (8inch)	60m	260 GSM	White, Black	3 Years

Lay Flat Hose Pipe Price

HDPE Lay Flat Pipe Price

The quoted prices include GST and one based on the current raw material price and manufacturing costs and will be subject to change. Contact us for bulk orders so that we can give you the best prices.

HDPE lay flat PIPE DATA SHEETS

Downloads

The information contained here is accurate and reliable to the best of our knowledge and provided for reference purposes only.

Brochures

Data Sheet

Test Certificate

Users Guide

Brochures

Data Sheet

Test Certificate

Users Guide

Most FAQS about Lay Flat Pipe

HDPE Lay Flat Pipe Frequently Ask Question (FAQ)

If you don’t see your question below, don’t hesitate to contact us. We love answering your queries!

What Is HDPE Woven Flat Pipe?

HDPE Lay Flat Pipe is an innovative plastic pipe for Irrigation. As the name suggests, it’s a flat and ultra-flexible hose. The lay-flat pipe’s ease of movement makes Irrigation possible for remote and uneven surfaces.

What is lay made of?

It is made from HDPE woven laminated fabrics.

How long will the MIPATEX HDPE Woven flat pipe last?

Typically, we expect these woven flat pipes to last between 3-5 years. It is resistant to climatic conditions and will last longer than that. It depends on how you handle and store them.
